Functional Features
High-end customized nano-scale light field acquisition chip.
Maximum display frame rate of 31 fps on camera.
Get multi-view target information in a single shot.
Multiple focus operations on the original image in a single shot.
Real-time output of 3D models of objects.
Support 3D measurement, defect detection and other different needs.
Compatible with high-performance light field rendering software.
Support the secondary development of camera and light field detection algorithm SDK.
Order Type
VA6H-06B1@L2D00CG
Drawing Download

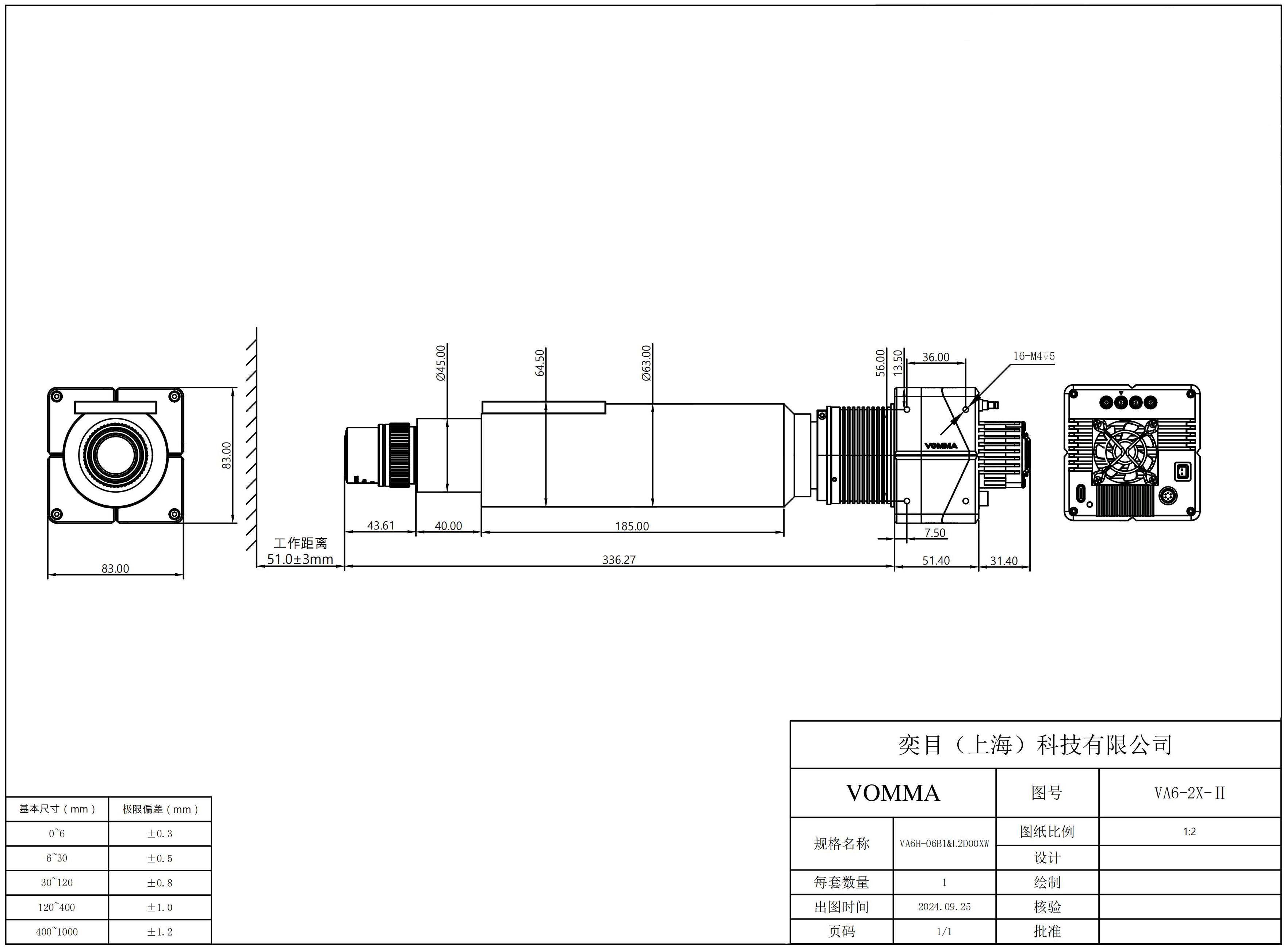

Overall dimensions
Map(.ply&.tiff)
Light Field Unique：Multi-View Image(.bmp)、Multiple Focus Image(.bmp)
1：Field of view(FOV) refers to the field of view after cutting according to 90% of the total frame
2：Full depth of field(DOF) refers to the field of view of the light field camera in the Z direction.The depth of panorama is divided into three parts according to the distance of the focal plane, 33% near the focal plane, 66% near the focal plane, and the corresponding accuracy data will be different, so it is listed separately
3：Z-direction repeat accuracy @ depth of field is calculated by dividing the camera depth of field equally into 61 positions, taking 31 consecutive pictures repeatedly at each position, calculating the repeat accuracy (1σ) of all points in 90% of the total frame
4：Full cycle frame rate: Real-time shooting, generating 3D point cloud images; Frame rate based on graphics card(GPU): NVIDIA RTX 4090. Other graphics card(GPU) configurations can be converted by multiplying the full cycle frame rate by the corresponding coefficient, such as: FPS(4080) = FPS(4090) * 0.75; As for 4070Ti, 3080Ti, 3070, 2080Ti graphics card proportional coefficients are: 0.64, 0.64, 0.39, 0.45
5：Product size and weight: affected by product configuration and manufacturing process, the actual body size/weight may exist differences, the data in the list is for reference only, please refer to the physical subject
