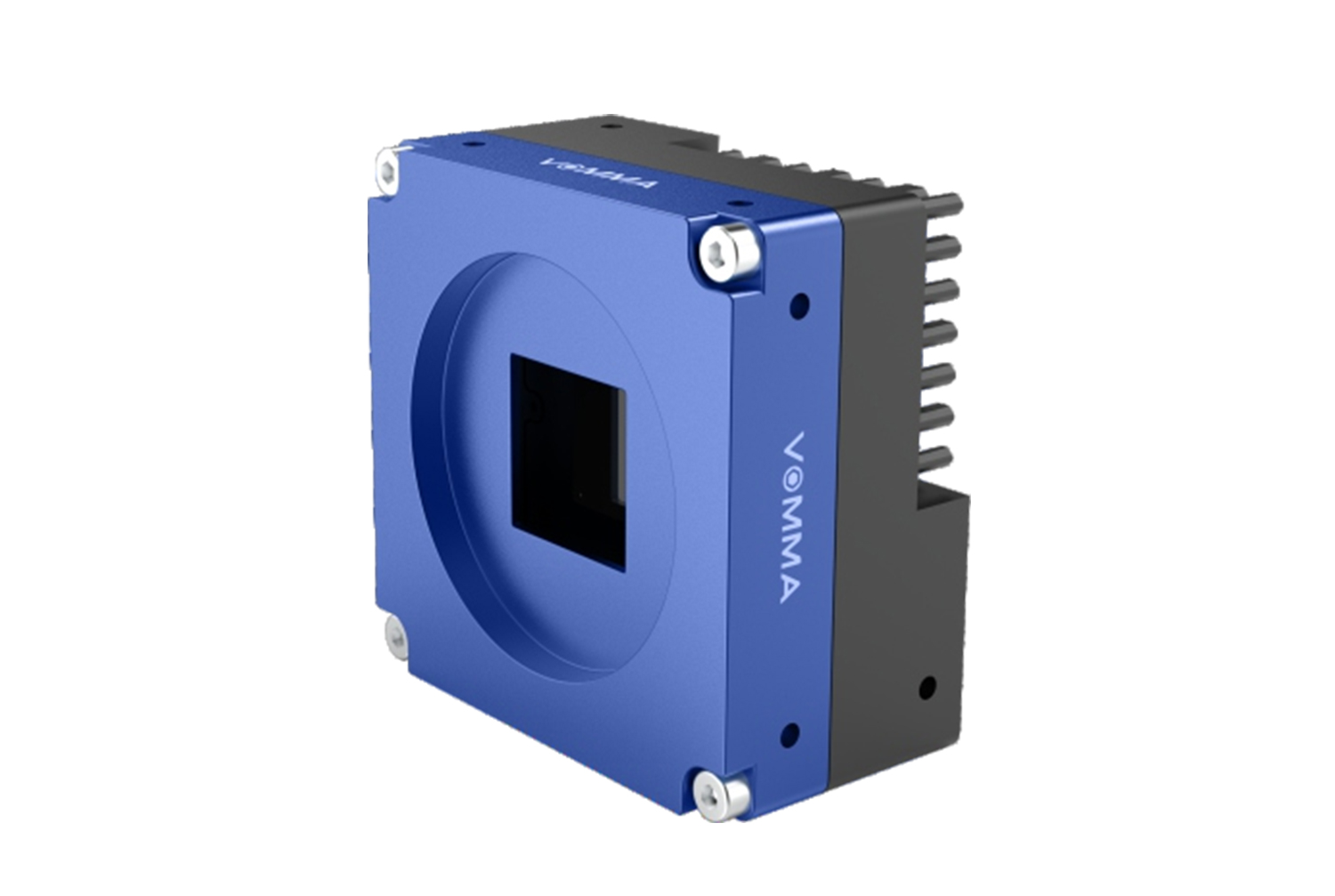

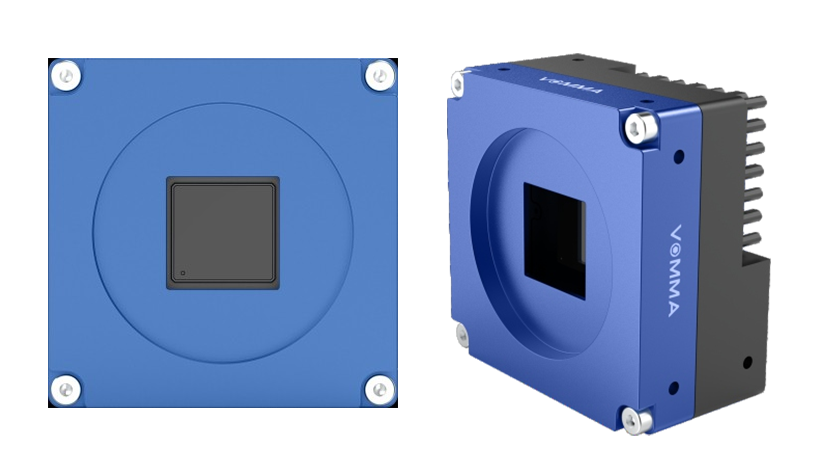

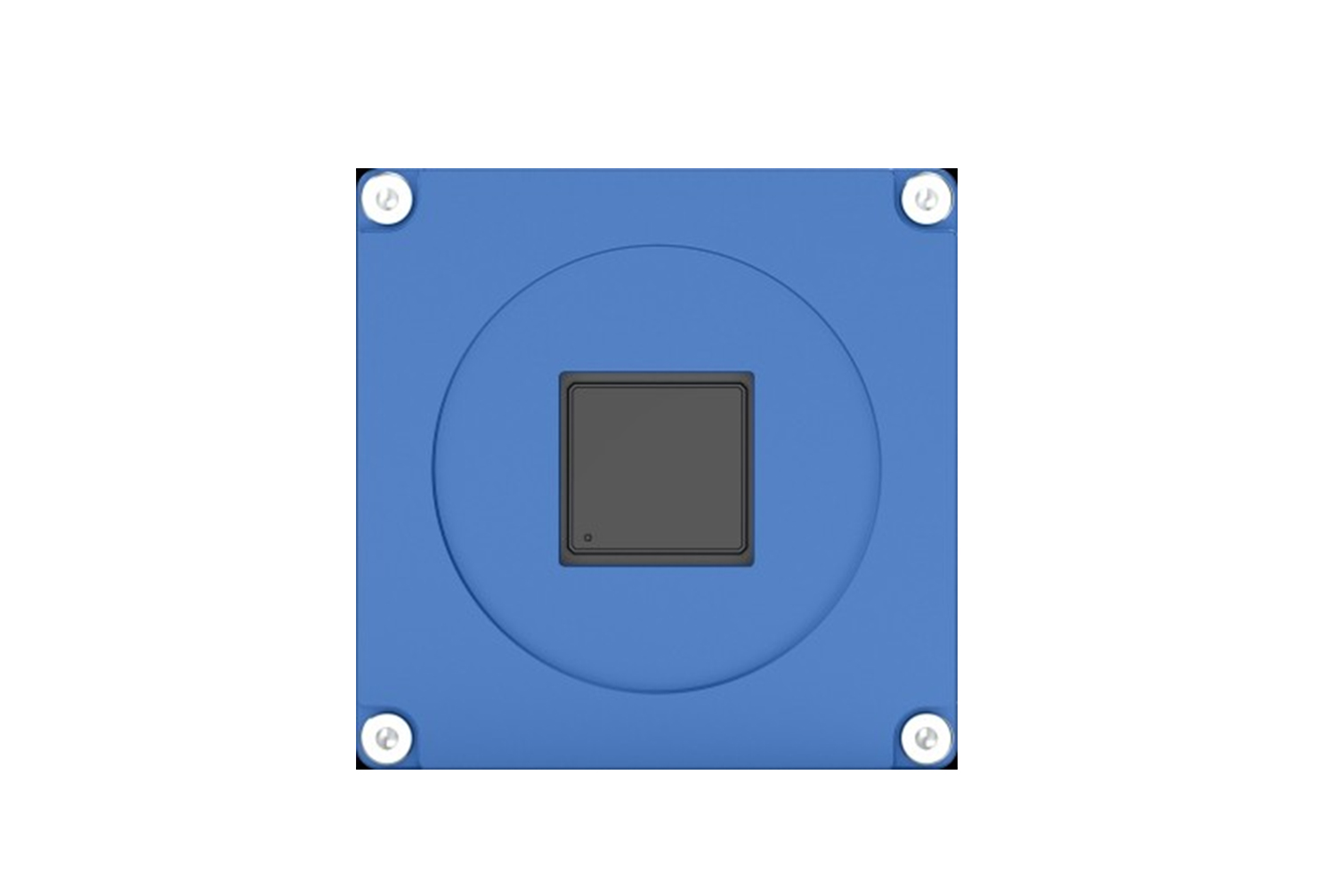

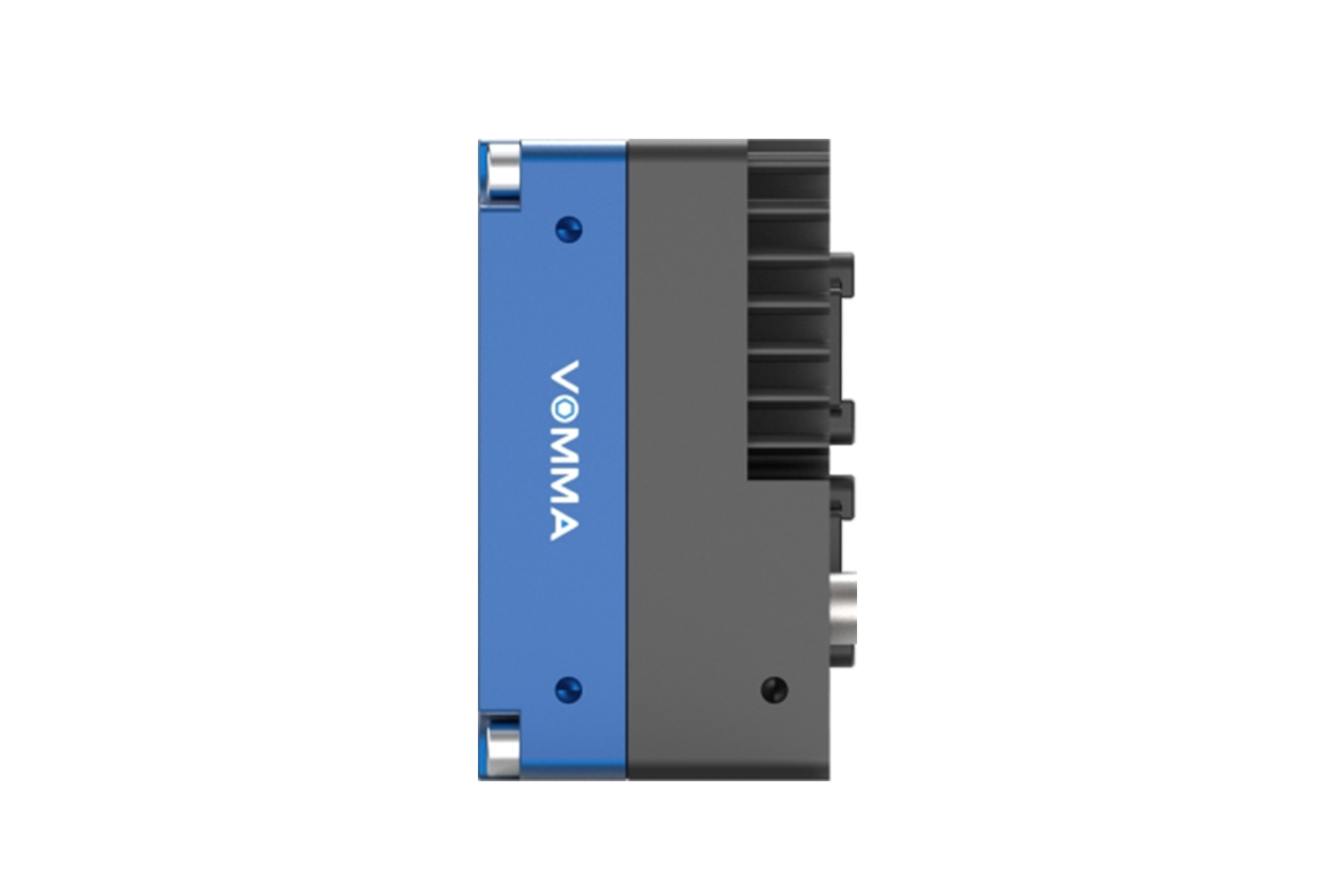

VA2 Series

VA2 Series

●High-end custom nanoscale light field acquisition chip
●A single shot can obtain multi-angle, multi-focus images
●Support 3D measurement, defect detection and real-time 3D modeling
●Support camera and light field algorithm SDK secondary development
●Supporting high performance light field rendering software
Service Hotline:



Adaptive len

1.1 - 1.75x2.1-5x10-20x

Range of visual field

X direction

7.3 - 11.2 mm2.6-6.1 mm0.64-1.28 mm

Y direction

7.3 - 11.2 mm2.6-6.1 mm0.64-1.28 mm

Z direction (depth of field)

3.9 -9.0 mm0.50 - 2.9 mm0.042-0.12 mm

Lateral operation rate ¹

17.5 - 24.8 μm5.5-15.4 μm2.2-3.9 μm

Z-direction repetition accuracy ²

0.5- 1.3 μm0.1-0.3 μm0.05 μm

Full-cycle frame rate ³

21 fps

1 . Lateral operation rate: The data is the best resolution obtained by the USAF1951 operation rate test card in the full range of the camera panoramic depth and full field of view.

2. Z-direction repetition accuracy (1σ):

(1) The data is tested in the camera's panoramic depth and full depth of vision;

(2) The following test method was adopted: Shot the field point calibration board at the edge of near-depth of field, focal plane and distant deep edge, and divided the FOV into 9 areas (the area of dots within the area was 1.4%FOV) at each location. The double standard deviation of 100 measurements of the B mean difference between the upper and lower calibration boards in the 27 areas was calculated, and the worst value was taken as the final result.

3 .Full-cycle frame rate: real-time shooting, calculating and saving multi-view and depth information frame rate (recommended graphics card configuration RTX3080Ti or above)
